The manual - in working width 1.0 m, 1.5 m and 2.0 m
Manufacture of reservoirs, manufacture of plastic apparatus, ventilation systems, serial welding, water treatment systems, environmental technology, swimming pools, scrubbers, transport and logistics

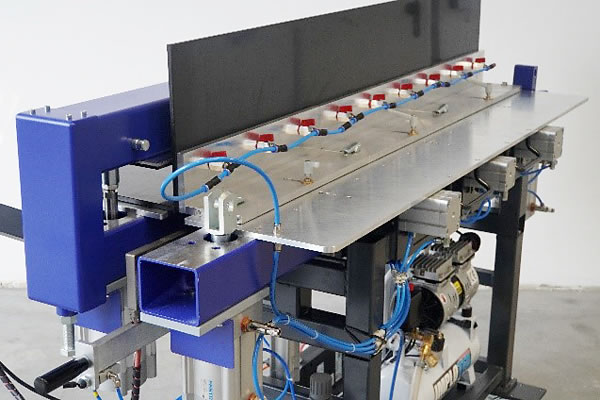

Optional 90° welding device

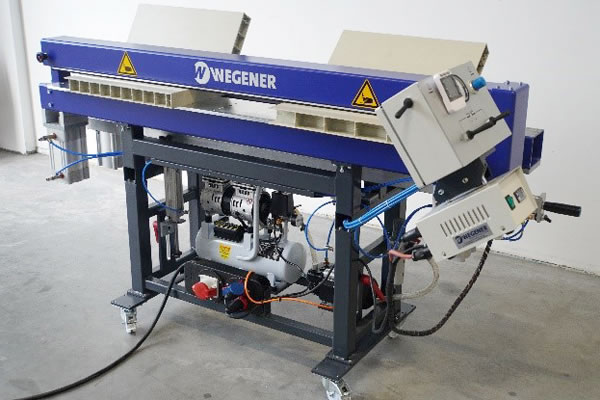

Optional mitre welding device

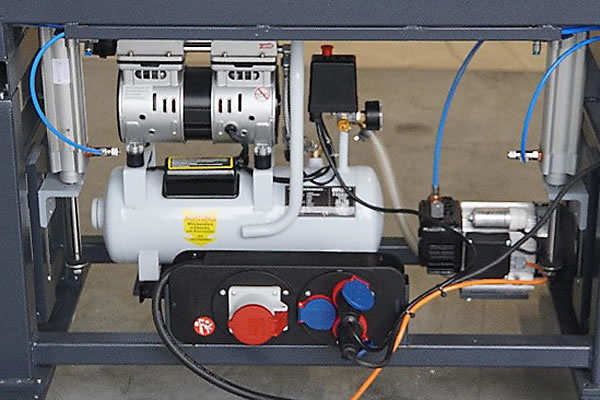

Optional air compressor, vacuum pump, multi-outlet power strip
| Technische Daten |
MWD 101 | MWD 151 | MWD 201 |
|---|---|---|---|
| Machine length (mm): | 1,360 | 1,860 | 2,360 |
| Machine width (mm): | 1,020 | 1,020 | 1,020 |
| Machine heigh (mm): | 1,170 | 1,170 | 1,170 |
| Total weight approx. (kg): | 310 | 340 | 370 |
| Optional vacuum pump: | 8.0 kg | 8.0 kg | 8.0 kg |
| Optional air compressor: | 15.0 kg | 15.0 kg | 15.0 kg |
| Optional multi-outlet power strip with supply cable: | 2.5 kg | 2.5 kg | 2.5 kg |
| Optional 90° welding device: | 11,0 kg | 16,5 kg | 22,0 kg |
| Optional mitre welding device: | 26.0 kg | 39.0 kg | 52.0 kg |
| Maximum working width: | 1,050 mm | 1,550 mm | 2,050 mm |
| Table force (6 bar): | 3,700 N | 4,750 N | 4,750 N |
| Clamping force (6 bar): | 8,800 N | 8,800 N | 8,800 N |
| Theoretic weldable sheet thickness: | |||
| PE [0,15 N/mm²] | 3 to 20 mm | 3 to 20 mm | 3 to 15 mm |
| PP [0,10 N/mm²] | 3 to 30 mm | 3 to 30 mm | 3 to 20 mm |
| PVDF [0,10 N/mm²] | 3 to 30 mm | 3 to 30 mm | 3 to 20 mm |
| PVC-C bei 6 bar [0,50 N/mm²] | ≤ 6 mm | ≤ 6 mm | ≤ 4 mm |
| PVC-U bei 6 bar [0,60 N/mm²] | ≤ 5 mm | ≤ 5 mm | ≤ 4 mm |
| Optional weldable sheet thickness for hollow material and/or foam material (taking in account the max. table forces): |
60 mm |
60 mm |
60 mm |
| Minimum channel cross-section [B x H]: | 360 x 190 mm | 360 x 190 mm | 360 x 190 mm |
| Minimum cylinder diameter: | Ø 325 mm | Ø 325 mm | Ø 325 mm |
| Power supply machine with 50 mm high heating sword: |
230 V 1/N/PE 50/60 Hz |
||
| Power supply machine with 100 mm high heating sword: |
400 / 230 V 3/N/PE 50/60 Hz |
||
| Power consumption base machine with 50 mm high heating sword: |
1.0 kW |
1.0 kW |
1.0 kW |
| Power consumption base machine with 100 mm high heating sword: |
2.0 kW |
2.0 kW |
2.0 kW |
| Increased capacity with optional air compressor: | 0.48 kVA | 0.48 kVA | 0.48 kVA |
| Increased capacity with optional vacuum pump: | 0.35 kVA | 0.35 kVA | 0.35 kVA |
| Compressed air connection: | 6 bar | 6 bar | 6 bar |
| Heating sword base machine with 50 mm height: |
20 x 50 mm, Teflon coated, Tmax = 260 °C |
||
| Heating sword base machine with 100 mm height: |
20 x 100 mm, Teflon coated, Tmax = 260 °C |
||
| User language: | symbolic | symbolic | symbolic |
| Documentation language: | D, GB, F, I, NL | D, GB, F, I, NL | D, GB, F, I, NL |
